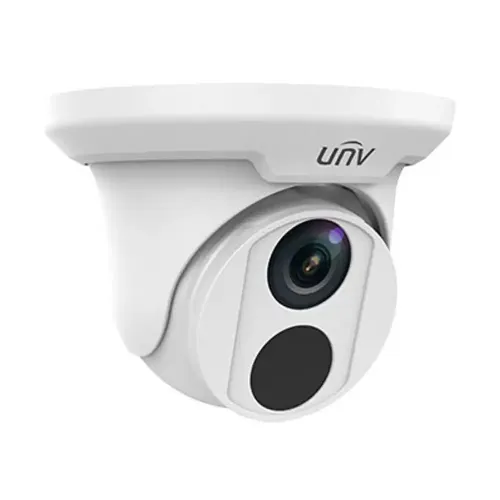

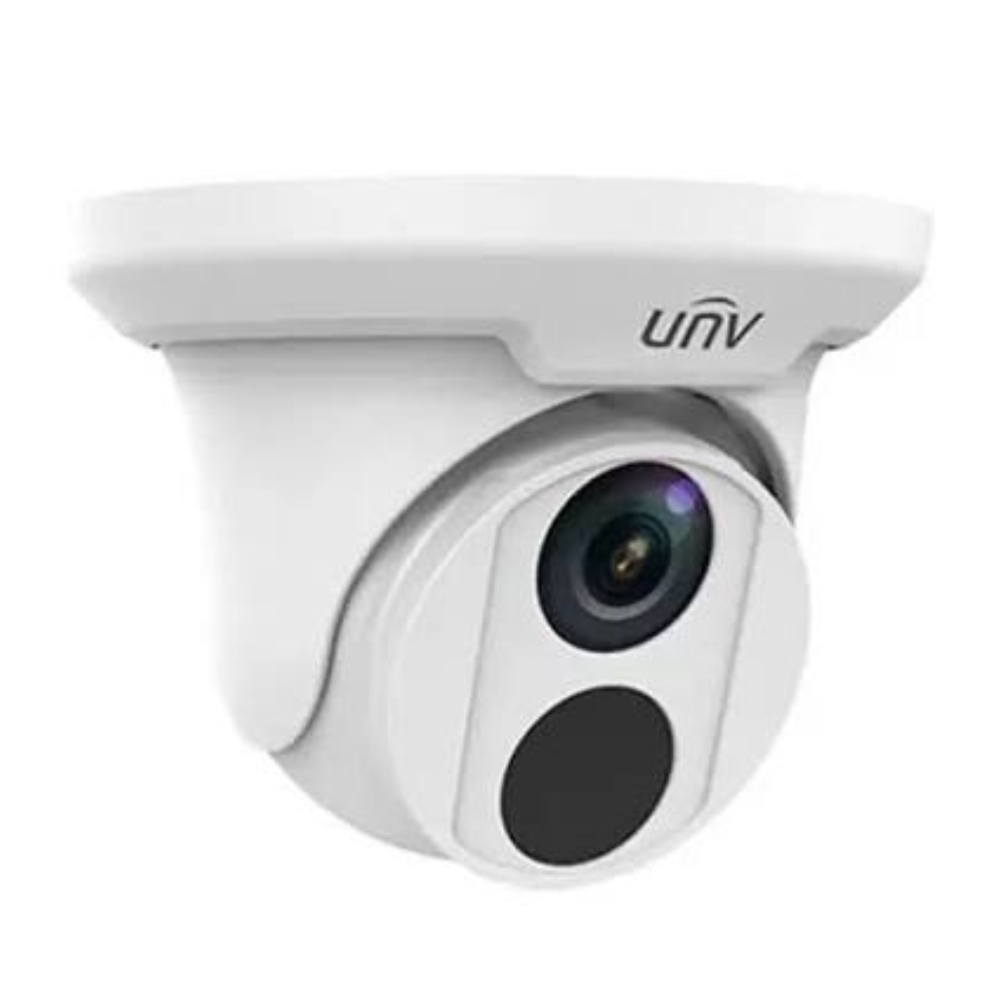

About Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera
The Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera delivers clear surveillance video with a 1/3-inch 4MP progressive scan CMOS sensor. Its 2.8mm fixed lens provides a 104.4° horizontal viewing angle, while 120dB WDR helps maintain image details in scenes with strong lighting differences. The camera also supports 30m IR, 9:16 corridor mode, and IP67 protection.
Specification
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model | IPC3614SR3-DPF28 |
| Camera Type | IR Fixed Dome Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Sensor Resolution | 4.0MP |
| Maximum Resolution | 2592 × 1520 |
| Lens | 2.8mm Fixed |
| Lens Aperture | F1.8 |
| Horizontal Field of View | 101.8° |
| Shutter | Auto/Manual, 1/6–1/100000s |
| Minimum Illumination | Color 0.02 Lux |
| IR Distance | Up to 30m |
| Day/Night | IR-Cut Filter with Auto Switch |
| Noise Reduction | 2D/3D DNR |
| S/N Ratio | >52dB |
| WDR | 120dB |
| Defog | Digital Defog |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 4MP up to 20fps |
| 4MP Resolution | 2592 × 1520 up to 20fps |
| 4MP Resolution | 2560 × 1440 up to 25fps |
| 3MP Resolution | 2048 × 1520 up to 30fps |
| Sub Stream | 2MP up to 30fps |
| Third Stream | D1 up to 30fps |
| Video Streaming | Triple Stream |
| Corridor Mode | 9:16 Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 Areas |
| ROI | Up to 8 Areas |
| Motion Detection | Up to 4 Areas |
| Smart Detection | Intrusion, Cross Line, Motion Detection |
| Intelligent Identification | Face Detection, Defocus, Scene Change |
| People Counting | Supported |
| Network Interface | 1 × RJ45 10/100M Base-TX |
| Compatible Integration | ONVIF Profile S, API |
| Power Supply | 12V DC or PoE IEEE 802.3af |
| Protection | IP67 |
Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera in BD
The Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera is suitable for residential, commercial, office, retail, and other surveillance systems in Bangladesh. Its 4MP resolution, 2.8mm wide-angle lens, 30m IR range, and IP67 protection make it suitable for different indoor and outdoor monitoring requirements. Availability may vary depending on current stock and market conditions.
User Experience of Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera
The camera provides a wide 104.4° horizontal viewing angle, making it useful for monitoring larger areas with a single camera. Its 4MP sensor produces detailed surveillance footage, while 120dB WDR helps maintain visibility when bright and dark areas appear together. The 30m IR range supports monitoring in low-light and nighttime conditions.
Why Choose this Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera?
This dome camera combines 4MP image quality with a wide-angle 2.8mm lens and strong low-light surveillance capability. Its 120dB WDR, 2D/3D DNR, digital defog, and Smart IR features help maintain useful image quality in changing lighting conditions. PoE support also simplifies network camera installation.
Key Features
- 4MP progressive scan CMOS sensor
- 2592 × 1520 maximum resolution
- 2.8mm fixed lens
- 104.4° horizontal viewing angle
- Up to 30m IR range
- 120dB WDR
- 2D/3D digital noise reduction
- Digital Defog
- Ultra 265, H.265, H.264, and MJPEG support
- Triple video streaming
- 9:16 corridor mode
- Intrusion and cross-line detection
- Face detection
- People counting
- ROI support
- ONVIF Profile S and API support
- PoE IEEE 802.3af support
- IP67 protection
Why Buy From Uniview Bangladesh?
Uniview Bangladesh offers professional surveillance products for residential, commercial, and business security requirements. The IPC3614SR3-DPF28 provides a practical combination of 4MP video quality, wide-angle coverage, infrared night vision, WDR, and weather-resistant protection.
- Genuine Uniview surveillance product range
- Suitable for indoor and outdoor monitoring
- 4MP high-resolution surveillance
- Wide-angle coverage with 2.8mm lens
- PoE-supported network camera
- Suitable for different security installations
Where It Can Be Used?
- Home security systems
- Office surveillance
- Retail shops and showrooms
- Commercial buildings
- Warehouses
- School and institutional premises
- Hotel and restaurant surveillance
- Entrances and reception areas
- Corridors and common areas
- Outdoor monitoring locations
What is the Price of Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera in BD?
The latest price of Uniview IPC3614SR3-DPF28 4MP IR Fixed Dome Camera in Bangladesh depends on product availability and current market conditions. For the latest pricing information, stock details, and purchasing assistance, please contact Uniview Bangladesh via WhatsApp or email.
Reviews
There are no reviews yet.
