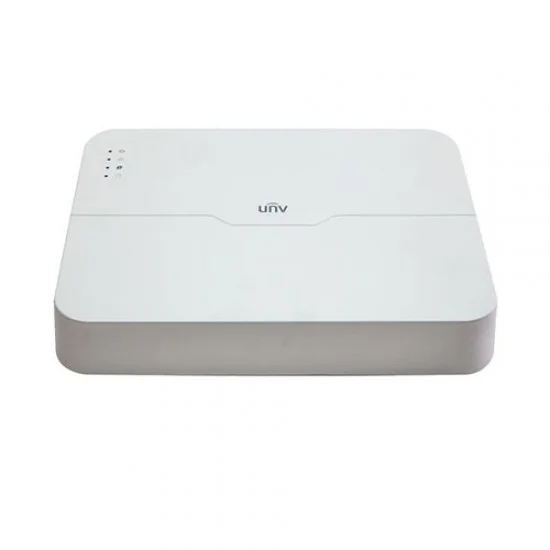

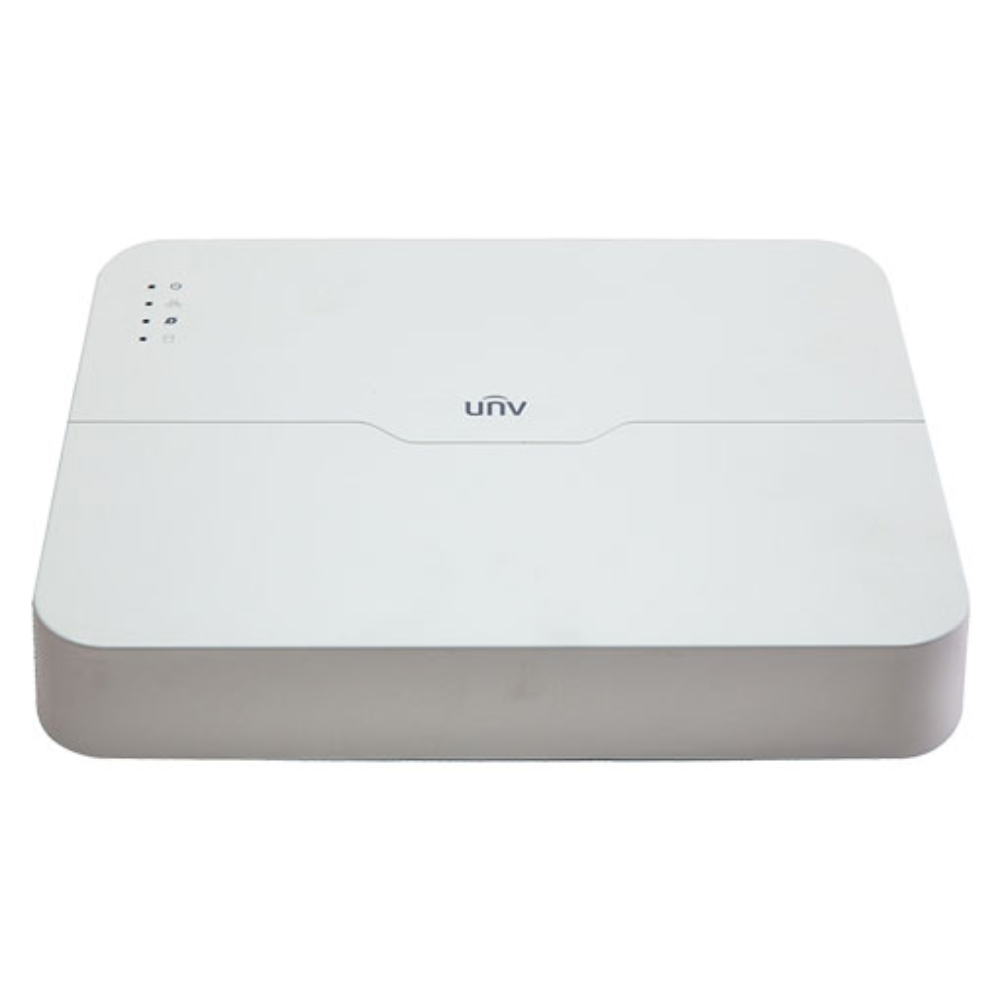

About the Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR
The Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR is a compact and reliable network video recorder designed for small and medium-sized IP camera security systems. It supports 4 IP camera channels and comes with 4 independent PoE ports for easy camera installation and power delivery.
This Uniview NVR supports recording up to 8MP resolution and provides HDMI output up to 4K resolution. It supports Ultra 265, H.265 and H.264 video compression to help reduce storage and bandwidth requirements. The NVR also supports ONVIF-compatible third-party IP cameras, making it suitable for different surveillance setups.
With one SATA interface, remote access, HDMI and VGA outputs, and up to 54W total PoE power, the Uniview NVR301-04L-P4 is a practical choice for home, office, shop, school and small business security systems.
Specification
| Feature | Specification |
|---|---|
| Brand | Uniview |
| Model | NVR301-04L-P4 |
| Product Type | 4 Channel PoE Network Video Recorder |
| IP Camera Input | 4 Channels |
| PoE Ports | 4 Independent 100 Mbps PoE Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port | Up to 30W |
| Total PoE Power | Up to 54W |
| Maximum Recording Resolution | 8MP |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Decoding Capability | 1 × 4K@30, 2 × 4MP@30, 4 × 1080p@30 |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 64Mbps |
| Synchronous Playback | 4 Channels |
| HDMI Output | 1 Channel, up to 4K 3840×2160@30Hz |
| VGA Output | 1 Channel, up to 1920×1080@60Hz |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Two-Way Audio | Supported |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 10TB |
| Network Interface | 1 × RJ45 10/100Mbps |
| USB Interface | 2 × USB 2.0 |
| Remote Users | Up to 128 |
| Supported Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| ONVIF | Supported |
| Power Supply | 48V DC |
| Power Consumption | ≤8W without HDD |
| Working Temperature | -10°C to +55°C |
| Working Humidity | 10% to 90% RH, non-condensing |
| Dimensions | 205 × 205 × 42 mm |
| Weight | Approx. 0.59 kg without HDD |
Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR in BD
The Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR is suitable for Bangladesh’s home, office, retail and small commercial CCTV installations. Its built-in PoE ports make installation easier because compatible IP cameras can receive network connectivity and power through the same Ethernet cable.
The 4-channel design is suitable when you need to connect up to four PoE IP cameras while keeping the system compact and easy to manage.
User Experience of Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR
The Uniview NVR301-04L-P4 is designed for straightforward installation and daily operation. Its 4 independent PoE ports allow compatible cameras to be connected directly to the NVR. The 4K HDMI output provides a clear local monitoring experience, while remote access allows users to monitor and manage the surveillance system from supported devices. Its Ultra 265, H.265 and H.264 support also helps manage video storage and network bandwidth efficiently.
Why Choose Uniview NVR301-04L-P4?
- 4-channel IP camera support
- 4 built-in independent PoE ports
- Up to 8MP recording resolution
- 4K HDMI output
- Ultra 265, H.265 and H.264 support
- 1 SATA interface for HDD storage
- Up to 10TB HDD support with the newer datasheet
- Up to 54W total PoE power
- Supports IEEE 802.3af and IEEE 802.3at
- 40Mbps incoming bandwidth
- 64Mbps outgoing bandwidth
- 4-channel synchronous playback
- ONVIF support for compatible third-party IP cameras
- Remote access support
- Compact design for small surveillance installations
Key Features
4 Channel IP Camera Support
The NVR supports up to 4 IP camera channels, making it suitable for small surveillance systems.
Built-in PoE
It comes with 4 independent 100Mbps PoE ports. Each port can provide up to 30W, while the total PoE power is up to 54W.
Up to 8MP Recording
The NVR supports recording resolutions up to 8MP, allowing it to work with high-resolution IP cameras.
4K HDMI Output
The HDMI interface supports output up to 3840×2160 at 30Hz, making it suitable for high-resolution local monitoring.
Efficient Video Compression
Ultra 265, H.265 and H.264 video compression helps reduce video storage and network bandwidth requirements.
1 SATA Storage
The NVR includes one SATA interface for HDD installation. The newer NVR301-L-P series datasheet lists support for up to 10TB per disk.
Remote Access
The system supports up to 128 remote users and includes network protocols such as P2P, UPnP, NTP, DHCP and PPPoE.
Why Buy From Smoke Detector Bangladesh?
- Genuine Uniview products
- Competitive Bangladesh market pricing
- Product consultation before purchase
- Support for CCTV and security system requirements
- Delivery support across Bangladesh
- Assistance with product selection and compatibility
- Support for bulk and project requirements
- Reliable after-sales support
Where Can It Be Used?
- Home CCTV systems
- Small offices
- Shops and retail stores
- Restaurants
- Schools and training centers
- Small warehouses
- Clinics and healthcare facilities
- Small commercial buildings
- Residential buildings
- Small business surveillance systems
What is the Price of Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR in Bangladesh?
The Uniview NVR301-04L-P4 4 Channel 1-SATA PoE NVR is available in Bangladesh through Uniview Bangladesh. For the latest price, availability, warranty details, and complete product information, contact us today. Our team will provide you with the current price and all necessary details.
