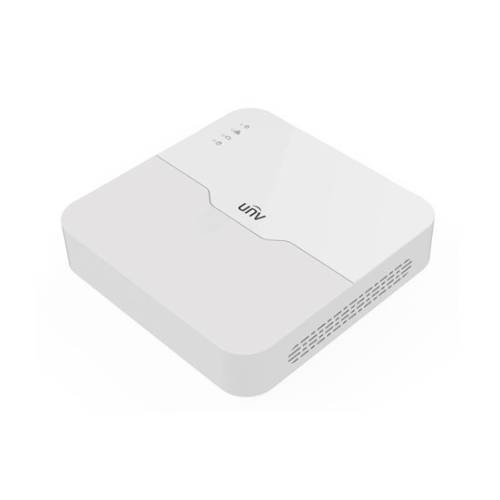

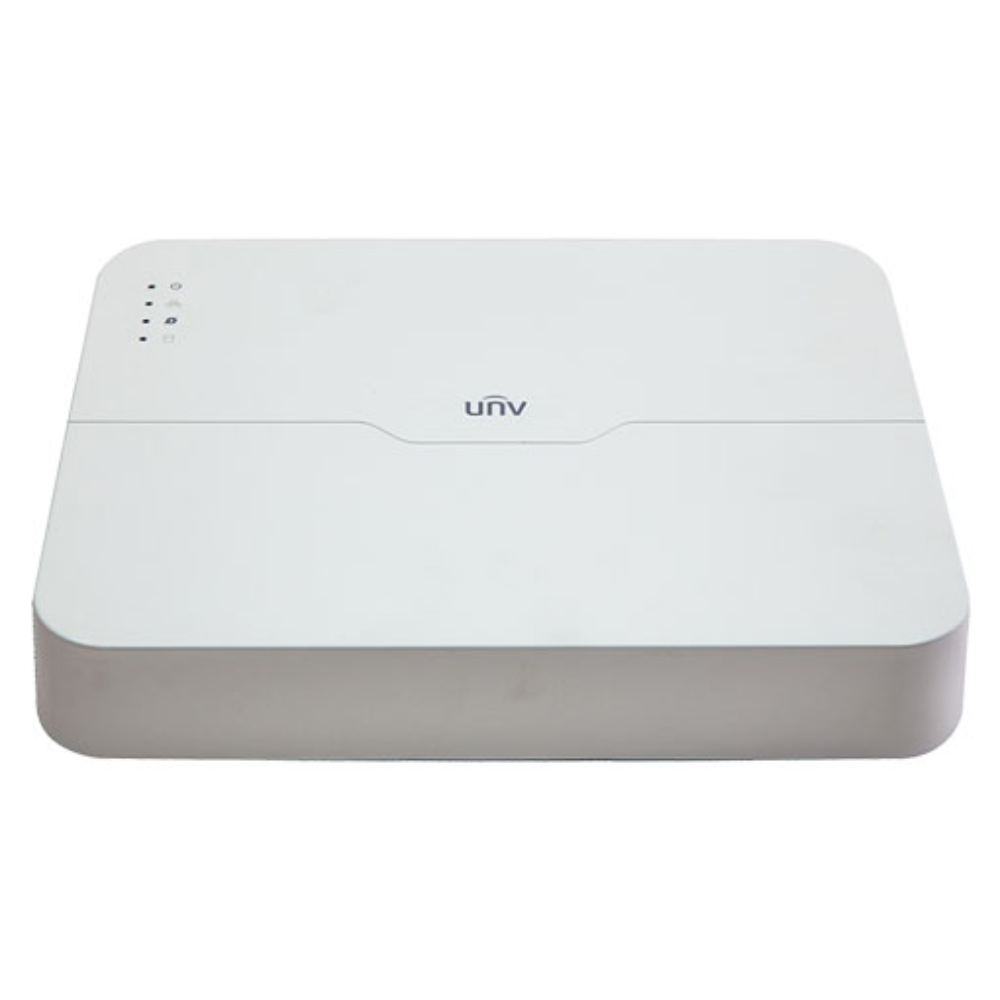

About the Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR
The Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR is a compact network video recorder designed for small and medium-sized IP camera security systems. It supports 4 IP camera channels and includes 4 independent PoE ports for easy camera connection and power supply. The NVR supports up to 4K recording and HDMI output up to 3840 × 2160 at 30Hz, making it suitable for high-resolution IP camera monitoring. It supports Ultra 265, H.265 and H.264 video compression for efficient video storage and network usage.
The Uniview NVR301-04LB-P4 also supports third-party IP cameras through ONVIF and provides one SATA interface for HDD storage. With its built-in PoE ports, compact size and 4-channel design, it is suitable for homes, offices, shops and small commercial security systems.
Specification
| Feature | Specification |
|---|---|
| Brand | Uniview |
| Model | NVR301-04LB-P4 |
| Product Type | 4 Channel 4K PoE NVR |
| IP Camera Input | 4 Channels |
| PoE Ports | 4 Independent 100Mbps PoE Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port | Up to 30W |
| Total PoE Power | Up to 54W |
| Maximum Recording Resolution | Up to 4K |
| Recording Resolution | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Decoding Capability | Up to 1 × 4K@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 4 × 1080p@30 |
| Incoming Bandwidth | Up to 40Mbps |
| Outgoing Bandwidth | Up to 40Mbps |
| Synchronous Playback | 4 Channels |
| HDMI Output | 1 Channel, up to 3840 × 2160@30Hz |
| VGA Output | 1 Channel, up to 1920 × 1080@60Hz |
| Audio Output | 1 Channel RCA |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 8TB |
| Network Interface | 1 × RJ45 10/100Mbps |
| USB Interface | 2 × USB 2.0 |
| Remote Users | Up to 128 |
| ONVIF | Supported |
| Network Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Power Supply | 48V DC |
| Power Consumption | ≤5W without HDD |
| Working Temperature | -10°C to +55°C |
| Working Humidity | ≤90% RH, non-condensing |
| Dimensions | 205 × 205 × 42 mm |
| Weight | Approx. 0.64kg without HDD |
Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR in BD
The Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR is a suitable choice for Bangladesh CCTV installations that require a compact 4-channel PoE NVR. Its 4 built-in PoE ports allow compatible IP cameras to receive network connectivity and power through Ethernet cables. It is suitable for homes, offices, retail shops, small warehouses and other small security installations.
User Experience of Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR
The NVR is designed for easy installation and daily surveillance management. Users can connect compatible PoE IP cameras directly to the four PoE ports and monitor the cameras through HDMI or VGA.
The HDMI interface supports up to 4K output, while 4-channel synchronous playback allows multiple camera recordings to be reviewed at the same time. ONVIF support also provides compatibility with suitable third-party IP cameras.
Why Choose Uniview NVR301-04LB-P4?
- 4-channel IP camera support
- 4 independent built-in PoE ports
- Up to 4K recording
- 4K HDMI output
- Ultra 265 / H.265 / H.264 support
- 1 SATA HDD interface
- Up to 8TB HDD support
- Up to 54W total PoE power
- IEEE 802.3af and IEEE 802.3at support
- 4-channel synchronous playback
- ONVIF third-party camera support
- Up to 128 remote users
- Compact 205 × 205 × 42 mm design
- Low power consumption without HDD
What is the Price of Uniview Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR in Bangladesh?
The Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR is available in Bangladesh through Uniview Bangladesh. For the latest price, availability, warranty details, and complete product information, contact us today. Our team will provide you with the current price and all necessary details.
