Specification
| Display | ||
| Interface | HDMI: 4K (3840×2160) @30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60 |
|
| Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF | |
| Decoding Capacity | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 | |
| Recording | ||
| Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space: Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| Alarm Input | N/A | |
| Playback And Backup | ||
| Sync Playback | 32 Channel | |
| Third-party support | ||
| Third-party support | ONVIF conformance: Profile S, Profile G, and Profile T | |
| Network | ||
| Interface | 2 RJ45 | |
| Ethernet Port | 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 2 SATA interfacess | |
| HDD Mode | Up to 10TB for each HDD | |
| Auxiliary Interface | ||
| USB | Rear panel: 1 x USB2.0, 1 x USB 3.0 Front panel: 1 x USB2.0 |
|
| RS232 | N/A | |
| RS485 | N/A | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤ 15W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 380mm × 315mm ×53mm (15.0″ × 12.4″ ×2.1″ ) | |
| Net Weight | ≤ 2.48 Kg (5.47 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

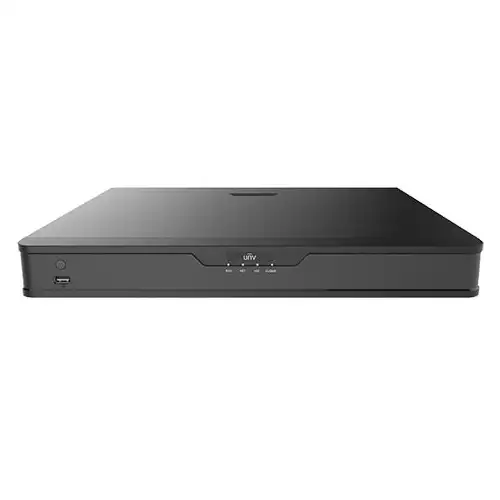

About Uniview NVR302-32S 32-Channel NVR
The Uniview NVR302-32S stands as a pinnacle in advanced video surveillance technology, presenting a formidable solution for comprehensive security needs. This 32-channel 4K HDD NVR is engineered with an exacting focus on precision, supporting a wide range of live view and playback resolutions, including 8MP, 5MP, 4MP, and down to D1. The NVR ensures real-time streaming and playback with Ultra 265, H.265, and H.264 formats. It exhibits formidable video decoding capabilities, accommodating configurations such as 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30, and 32 x D1. The device integrates seamlessly with mainstream IP cameras, conforming to RTSP and ONVIF Profiles S, G, and T.
Noteworthy features include a 4-channel snapshot capability up to D1 resolution and a robust network interface with an incoming bandwidth of 160 Mbps and an outgoing bandwidth of 64 Mbps. The Uniview NVR302-32S also supports a range of network protocols, such as TCP/IP, P2P, UPnP, and more. With 32-channel IP video input, 1-channel RCA two-way audio input, and flexible screen corridor modes, this NVR ensures meticulous surveillance monitoring. Additionally, its Snapshot Abnormal Alert system enhances security vigilance. The Uniview NVR302-32S is a paragon of technological prowess, delivering unmatched precision and reliability in the realm of video surveillance.
