Specification
| System | ||
| Operating System | Linux system | |
| Audio and Video | ||
| IP Camera Input | 16 Channel | |
| Display | ||
| Interface | HDMI/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI2: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Decoding Capacity | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 | |
| Recording | ||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Face detection, Intrusion detection, cross-line detection, Object removal, Object abandonment, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behavior search, and people counting | |
| Alarm Input | 16 Channel Output: 4 Channel |
|
| Playback And Backup | ||
| Sync Playback | 16 Channel | |
| Third-party support | ||
| Third-party support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, and Profile T | |
| Network | ||
| Interface | 2 RJ45 | |
| Ethernet Port | 10M/100M/1000M self-adaptive ethernet interface | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 4 SATA interfaces | |
| HDD Mode | Up to 8TB for each HDD | |
| Auxiliary Interface | ||
| USB | Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB 3.0 |
|
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | Power Consumption: ≤ 12W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 440mm × 344mm× 50mm (17.3″ × 13.5″×2.0″) | |
| Net Weight | ≤ 3.14 kg (6.92lb) | |
| Warranty | ||
| Manufacturing Warranty | 2 Years Warranty | |

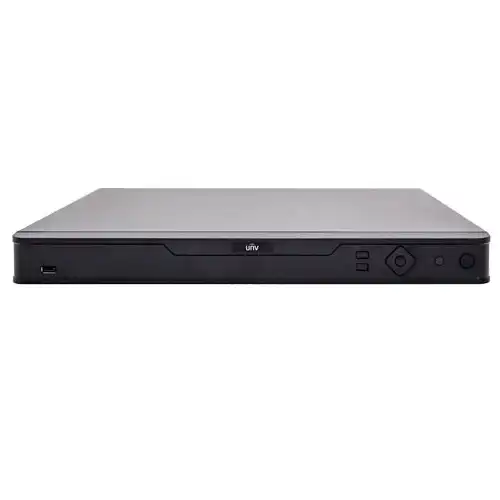

About Uniview NVR304-16E 16-Channel 4K 4HDDs NVR
Experience advanced video surveillance with the Uniview NVR304-16E, a top-of-the-line 16-channel 4K 4HDD NVR designed to elevate your security infrastructure. Boasting cloud upgrade support, this NVR ensures hassle-free maintenance and accessibility. With 2 HDMI and 1 VGA port, along with 2 HDMI outputs providing up to 4K video resolution, the NVR304-16E delivers crystal-clear visuals for live viewing and playback. Supporting up to 12 Megapixels resolution recording and employing Ultra 265, H.265, and H.264 video formats, this NVR ensures exceptional video quality.
The video decoding capability includes 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, and 32 x 960p@25. The device features various fisheye dewarping modes for both GUI and Web interfaces, providing flexible viewing options. Equipped with the latest ANR technology, the NVR ensures storage reliability during temporary network disconnects.
With 4 SATA HDDs supporting up to 10TB each, ample storage capacity is guaranteed. The NVR304-16E offers convenient connectivity with 2 RJ45 network interfaces, supporting a 10M/100M/1000M self-adaptive Ethernet interface, and 3 USB interfaces for easy data management. Additionally, the device includes advanced alarm input and output features, along with statistical analysis for effortless people and object counting. Upgrade your surveillance capabilities with the Uniview NVR304-16E for a robust and feature-rich 4K NVR solution.
